Pressure and Abrasion Resistant Hoses

Founded in 1952, TOTAKU INDUSTRIES, INC. has been a pioneer in the pipes and hose industry, creating the prioritizing customer satisfaction through exceptional quality, we continuously innovate to meet the evolving needs of our customers. At TOTAKU, we are dedicated to making a positive impact on the world by developing unique, thoughtful products that address modern challenges.

FEATURED PRODUCTS

Notice:

  • The data in this catalog uses values in a straight hose configuration.
  • The permissible pressure is not the maximum operating pressure. Please refer to the “Operating Pressure Design Table” in the hose handling precautions and configure according to the operating pressure (normal working pressure). Also, please note that the combination of fittings and clamps, operating temperature, and bending conditions may affect performance.

TOTAKU LINE POWER-AT

Features

  • Exceptional pressure resistance with an allowable pressure of 145 psi (1.00 MPa) at normal temperature, built to minimize stretch under pressure.
  • Outstanding durability.
  • Engineered to withstand external pressure with minimal deformation.

Applications

  • Suction and discharge of muddy water in civil engineering projects.
  • Suction and discharge of materials like sand, gravel, and sludge.
  • Ideal for dredging and land reclamation work.
  • Suction and discharge of powdered and granular materials, such as cement.
  • Transport of high-viscosity substances and transfer over long vertical distances.

Cautions

  • Avoid long-term storage outdoors, as this may cause cracks to form due to ozone degradation.

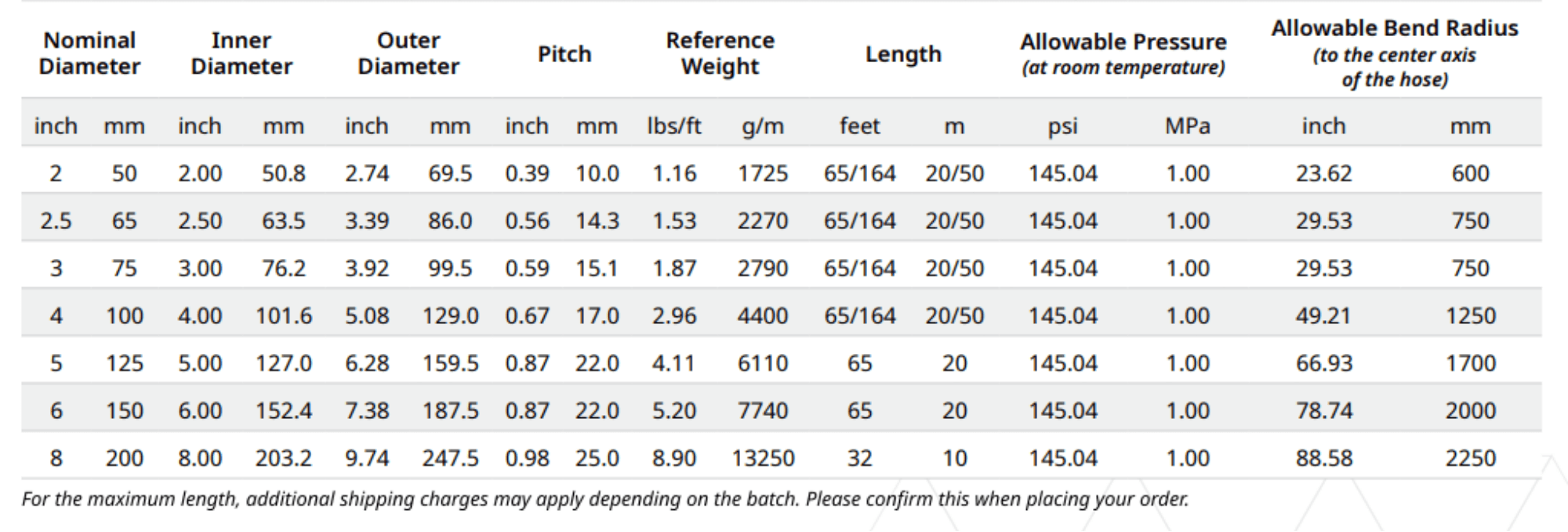

Standard Dimensions and Properties

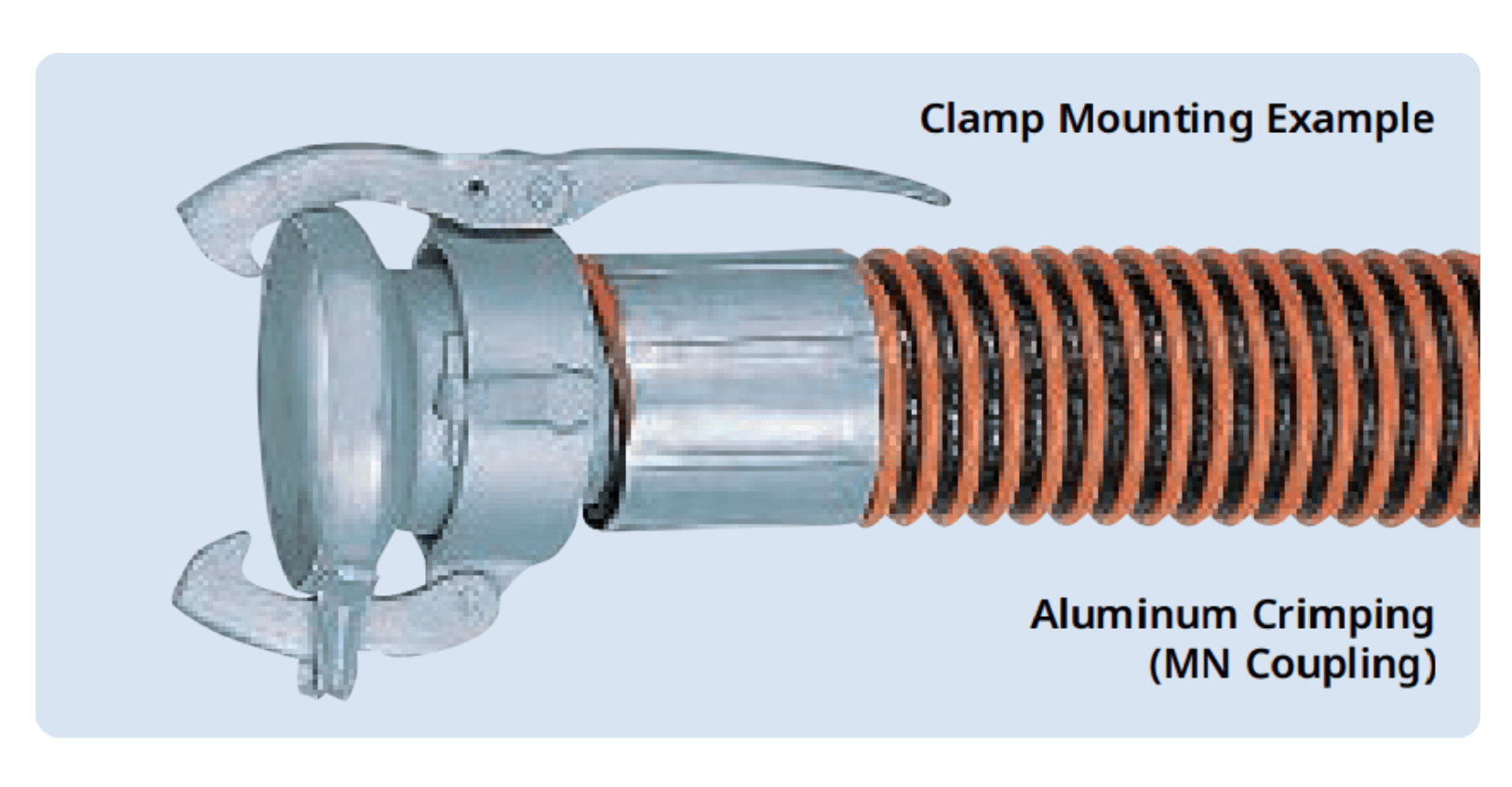

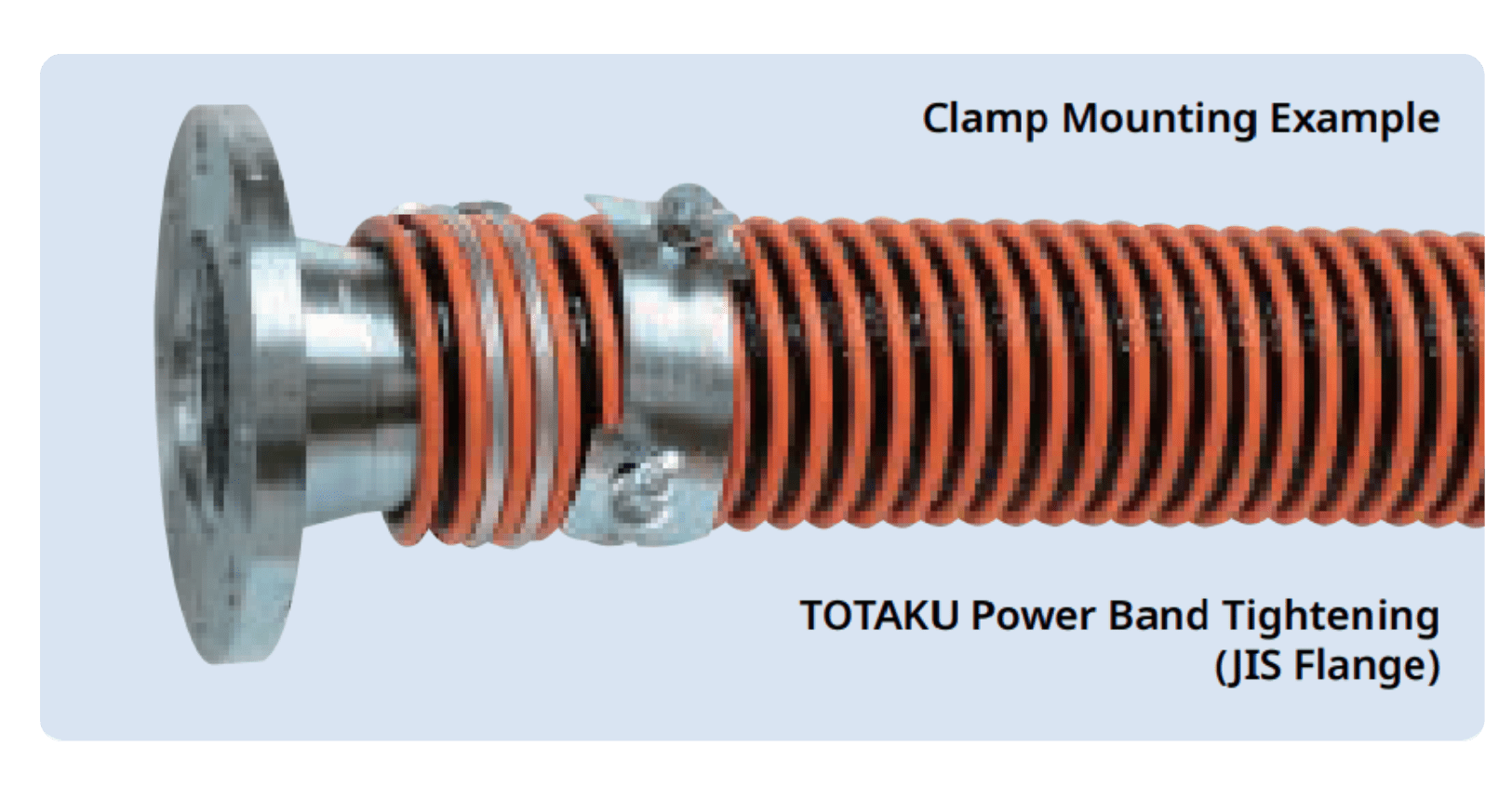

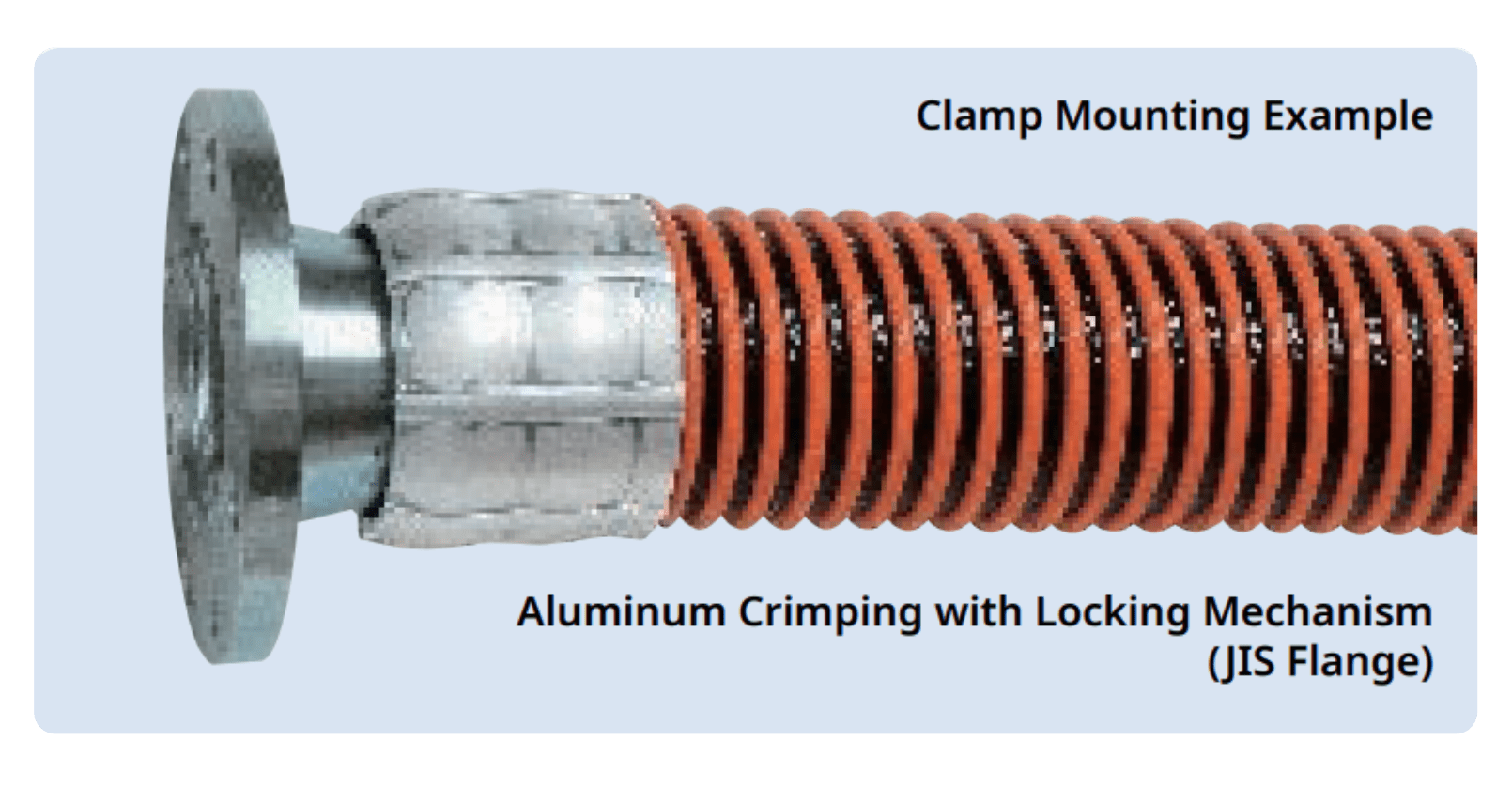

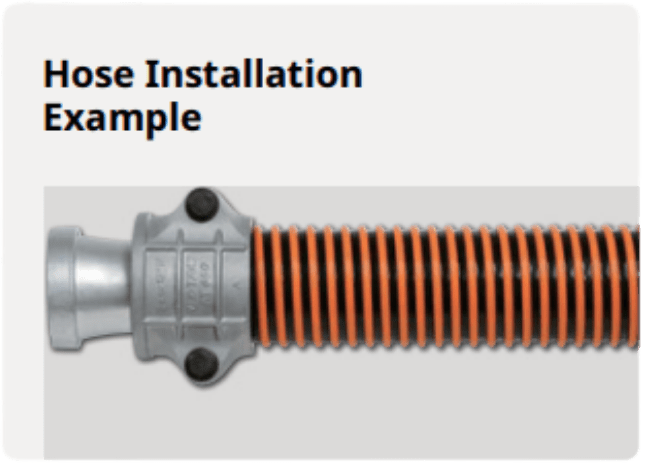

The TOTAKU Power Band can be installed on-site.

(For 8 in (ϕ200), crimping is recommended for added safety.)

  • Pre-install the TOTAKU Power Band onto the hose, and then insert the fitting.
  • Use a torque wrench to tighten the bolts. Be cautious not to overtighten, as it could damage the hose.

Tightening Torque:

  • 2 in (ϕ50), 2.5 in (ϕ65): 10.84 lb-ft (14.7 N·m)
  • 3 in (ϕ75): 14.46 lb-ft (19.6 N·m)
  • 4 in (ϕ100), 5 in (ϕ125): 18.07 lb-ft (24.5 N·m)
  • 6 in (ϕ150), 8 in (ϕ200): 21.69 lb-ft (29.4 N·m)

Note:

For on-site installation, take safety precautions to prevent accidents caused by fittings becoming loose. It is recommended to secure the TOTAKU Power Band to the flange or connection points using wire or binding materials.

Operating Temperature Range:

°F: 14 to 122 °C: -10 to 50

Note:

• The permissible pressure varies with operating temperature.

• Operating down to a vacuum level of approximately -29.5 inHg (-0.1 MPa) is feasible at room temperature.

SHIMETAC for LINE POWER-AT

Applicable Sizes: 2 in (φ50 mm) to 6in (φ150mm)

Features
  • The allowable pressure with a SHIMETAC connection matches the allowable pressure of the hose itself.
  • Fittings can be easily attached and removed on-site.
Notes
  • Be sure to use the dedicated fittings for SHIMETAC.
  • The fittings shown below are examples.

Dedicated Fittings for SHIMETAC

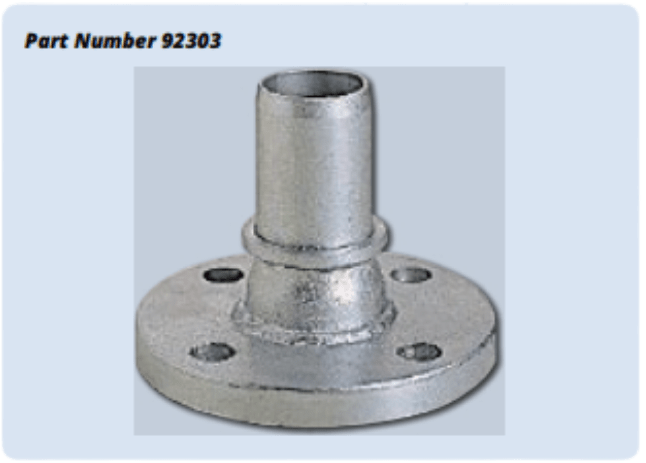

Flange with SHIMETAC Shank

(Steel Structure)

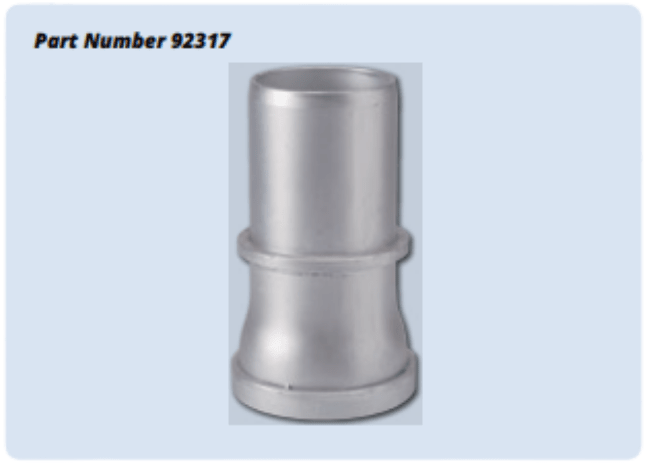

S Collar with SHIMETAC Shank

(Steel Structure)

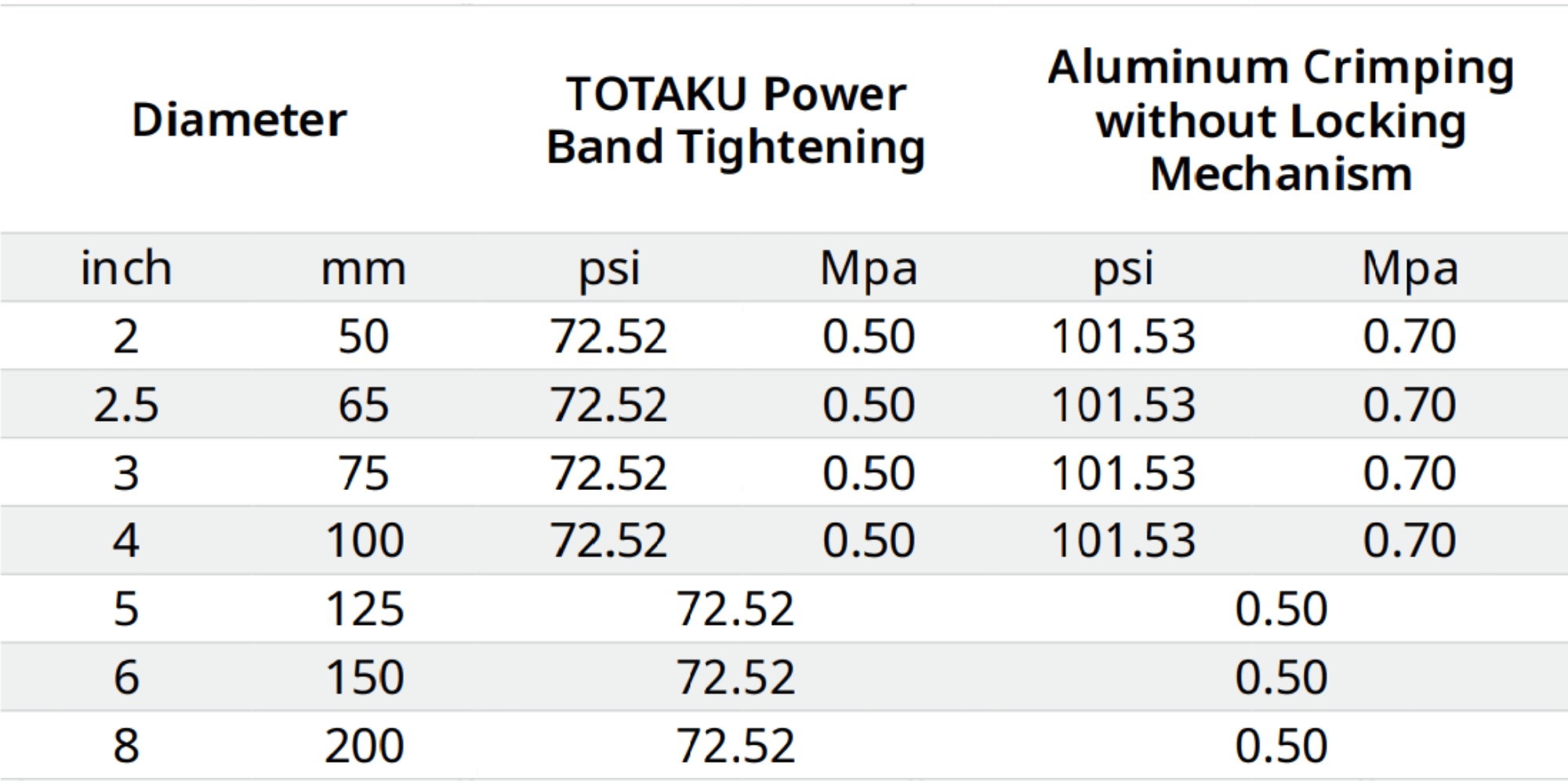

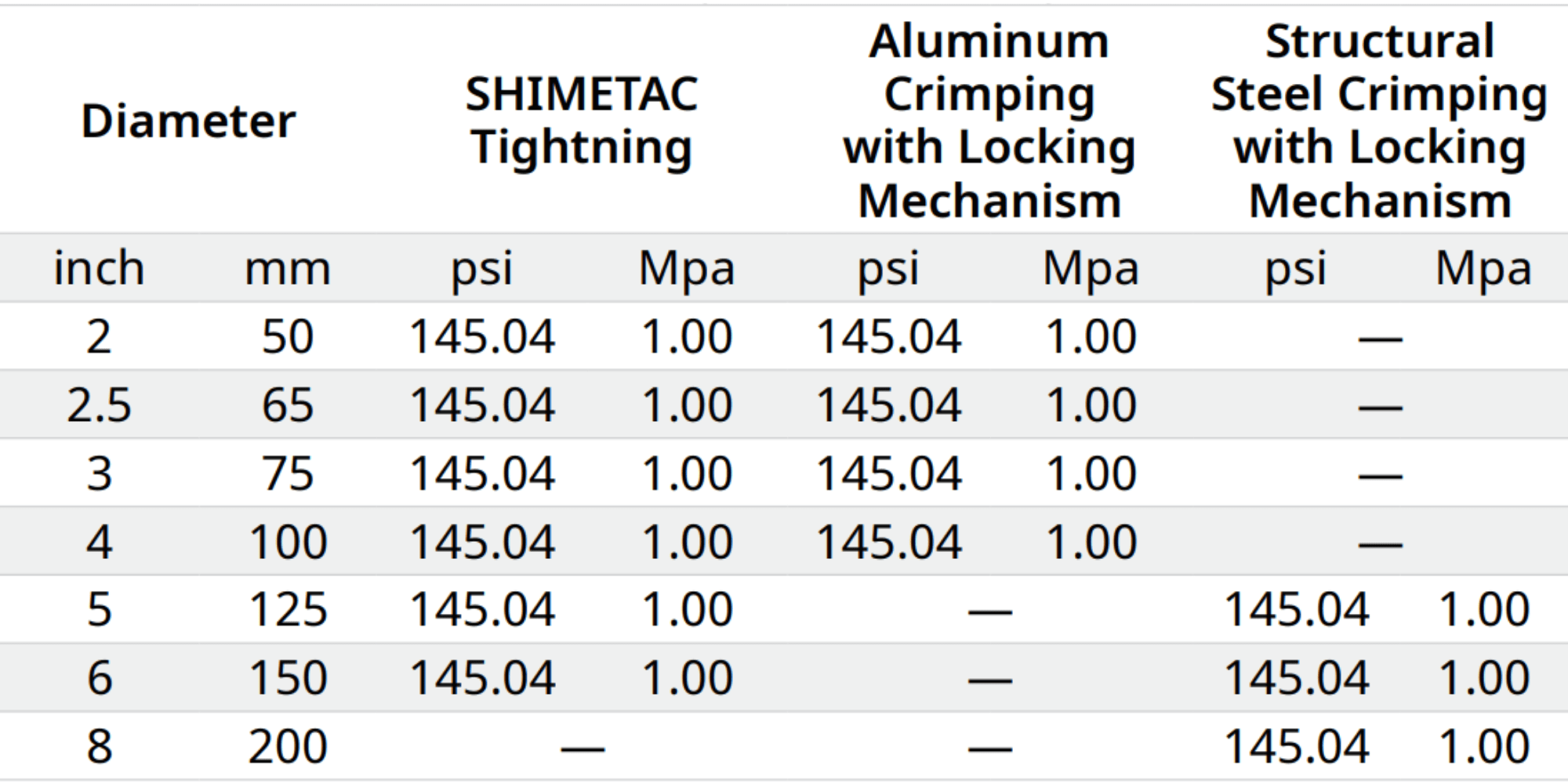

TOTAKU LINE POWER-AT Standard Fittings and Band Allowable Pressure Table

(Normal Temperature)

TOTAKU LINE POWER-ATS

Features
  • A large-diameter version of the TOTAKU LINE POWER-AT.
  • Designed with a thicker layer of abrasion-resistant rubber compared to the standard TOTAKU LINE POWER-AT.
Applications
  • Suction and discharge of sand, gravel, sludge, and grains during harvest.
  • Suitable for dredging and land reclamation projects.
  • Suction and discharge of powdered and granular materials, such as cement.
Cautions
  • Avoid long-term storage outdoors, as this may lead to cracks caused by ozone degradation.
Installation of Fittings
  • Fitting installation is performed at our factory.

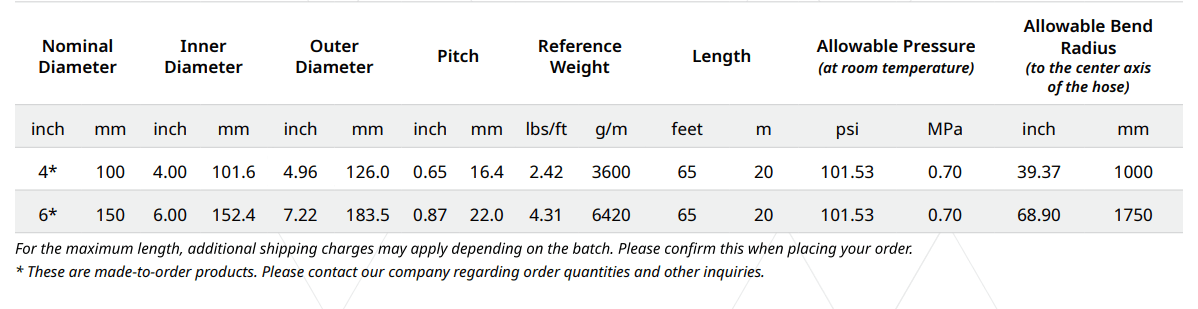

Standard Dimensions and Properties

Operating Temperature Range:

°F: 14 to 122 °C: -10 to 50

Notes

The permissible pressure varies with operating temperature. Operating down to a vacuum level of approximately -29.5 inHg (-0.1 MPa) is feasible at room temperature.

TOTAKU LINE POWER-ATL

Features
  • A lightweight version of the TOTAKU LINE POWER-AT.
Applications
  • Suction and discharge of muddy water for civil engineering projects, such as mud-water shield construction.
  • Suction and discharge of powdered and granular materials, such as cement.
  • Transport of high-viscosity substances and transfer over long vertical distances.
Cautions
  • Avoid long-term storage outdoors, as this may lead to cracks caused by ozone degradation.

Standard Dimensions and Properties

Operating Temperature Range:

°F: 14 to 122 °C: -10 to 50

Notes

The permissible pressure varies with operating temperature. Operating down to a vacuum level of approximately -29.5 inHg (-0.1 MPa) is feasible at room temperature.

TOTAKU LINE POWER-WA

Features
  • With an allowable pressure of 218 psi (1.50 MPa) at normal temperature, it ranks among the best for pressure- and abrasion-resistant hoses.
Applications
  • Suitable for general water supply, cooling water, and wastewater.
  • Ideal for water supply and discharge in general factories, civil engineering and construction sites, and shipbuilding facilities.
Durability Performance (Repeated Water Pressure Test)
  • 0 to 218 psi (0 to 1.50 MPa) at 20-second intervals.
  • Result: No abnormalities were found after 50,000 cycles for all sizes.

Installation of Fitting

  • Fitting installation is performed at our factory.
